2543-1035 543-00055A Engine Controller Assembly For Doosan 220LC-V DH220-5 Excavator Controller

China 2543-1035 543-00055A Engine Controller Assembly For Doosan 220LC-V DH220-5 Excavator Controller supplier

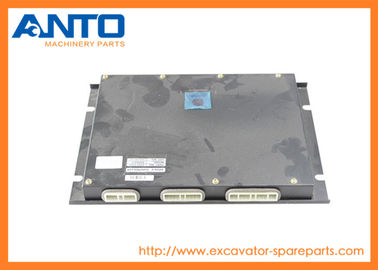

Large Image :  2543-1035 543-00055A Engine Controller Assembly For Doosan 220LC-V DH220-5 Excavator Controller

Product Details:

Place of Origin: China
Brand Name: ANTO
Certification: ISO9001
Model Number: DH220-5

Payment & Shipping Terms:

Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Wooden box for heavy parts, paper carton for light parts
Delivery Time: 3-7 working days
Payment Terms: D/P, D/A, T/T, L/C, Western Union, MoneyGram
Supply Ability: 100-2000
Contact Now
Detailed Product Description
Category: Excavator Controller Model: DH220-5
Part NO.: 2543-1035 543-00055A Brand: Doosan
Parts Name: Excavator MCU Package: Standard Box Package



  • 2543-1035 543-00055A Engine Controller Assembly Applied To Doosan 220LC-V DH220-5 Excavator Controller



Excavator spare parts name Engine controller assy
Equipment Model Doosan 220LC-V
Parts Category excavator controller
Spare parts Condition Brand new
MOQ of order(PCS, SET) 1
Parts Availability In stock
Delivery Lead time 1-3 days




  • Application

SOLAR 220LC-V
ELECTRIC BOX ASS'Y (2) » CONTROLLER;EPOS-V 2543-1035
SOLAR 220LC-V
CAR STEREO-JAPAN » CONTROLLER;EPOS-V 2543-1035
ELECTRIC BOX ASS'Y(2) » CONTROLLER;EPOS-V 2543-1035
SOLAR 220LL
ELECTRIC BOX ASS'Y(2)-ELECTRIC PARTS » CONTROLLER;EPOS-V 2543-1035
SOLAR 220N-V
ELECTRIC BOX ASS'Y(2) » CONTROLLER;EPOS-V 2543-1035
CAR STEREO-JAPAN » CONTROLLER;EPOS-V 2543-1035

  • Parts Diagram

2543-1035 543-00055A Engine Controller Assembly For Doosan 220LC-V DH220-5 Excavator Controller

Pos. Part No Qty Parts name Comments
-. 2500-1173B [1] ELECTRIC BOX ASS'Y
-. 2500-1173C [1] ELECTRIC BOX ASS'Y
-. 2500-1173E [1] ELECTRIC BOX ASS'Y
-. 2500-1173G [1] ELECTRIC BOX ASS'Y
-. 2500-1173H [1] ELECTRIC BOX ASS'Y
-. 2500-1173I [1] ELECTRIC BOX ASS'Y
-. 2500-1173J [1] ELECTRIC BOX ASS'Y
-. 2500-1173K [1] ELECTRIC BOX ASS'Y
10 2190-3231D2 [1] PLATE;NAME
10 2190-3231D16 [1] PLATE;NAME(RPM SETTING)
10 2190-3231D29 [1] PLATE;NAME(RPM SETTING)
10 2190-3231D30 [1] PLATE;NAME(RPM SETTING)
11 2543-9015 [1] CONTROLLER;STARTER
12 S3450943 [2] SCREW
13 S5102303 [2] . WASHER
14 2537-9008 [1] TIMER;WIPER
15 S3450943 [2] SCREW
16 S5102303 [2] . WASHER
17 2531-1003 [1] CONVERTER;DC-DC
18 S3450953 [2] SCREW
19 S5102303 [2] . WASHER
2 2543-1035 [1] CONTROLLER;EPOS-V 2543-1035A
2 2543-1035A [1] CONTROLLER;EPOS-V
20 2516-1116 [1] BUZZER
21 S3450943 [2] SCREW
22 S5102303 [2] . WASHER
23 2544-9029 [1] RELAY;ENGINE STOP 2544-9033
23 2544-9033 [1] RELAY
24 2544-9029 [1] RELAY;ENGINE STOP 2544-9033
24 2544-9033 [1] RELAY
25 2544-9029 [1] RELAY;ENGINE STOP 2544-9033
25 2544-9033 [1] RELAY
26 2544-9029 [1] RELAY;ENGINE STOP 2544-9033
26 2544-9033 [1] RELAY
27 2544-9029 [1] RELAY;ENGINE STOP 2544-9033
27 2544-9033 [1] RELAY
28 2190-2037D19 [1] PLATE;NAME
29 2190-2037D20 [1] PLATE;NAME
3 S4012633 [4] NUT
30 2530-1603A [1] HARNESS;ELECTRIC BOX
30 2530-1603B [1] HARNESS;ELECTRIC BOX
31 2530-1604A [1] HARNESS;CABIN
31 2530-1604B [1] HARNESS;CABIN
32 S3450823 [8] SCREW
33 S5100203 [8] WASHER
34 2124-1509D2 [2] CLIP
35 2124-1509D4 [1] CLIP D30/M8
36 2124-1509D5 [2] CLIP D36/M8
37 S0508853 [2] . BOLT
38 S4012533 [4] NUT
39 S5102503 [4] . WASHER
4 S5102603 [4] . WASHER
5 S5010613 [4] WASHER
6 2543-1036 [1] CONTROLLER;THROTTLE
6 543-00074 [1] CONTROLLER;THROTTLE
7 S4012333 [4] NUT
8 S5102303 [4] . WASHER
9 S5010313 [4] WASHER


  • Description


Controller are designed precisely to work in excavator electricial system to meet the prime product requirements for machine performance, reliability, durability, operating costs and productivity.



  • Advantage



1. The excavator controller are built to fit to the machine original system.

2. The excavator controller are supplied strictly according to the genuine parts catalog.

3. All the excavator controller are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including case carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of spare parts that cover excavator. HITACHI KOMATSU HYUNDAI CAT VOLVO DOOSAN KOBELCO SUMITOMO KATO JCB




  • Warranty


1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below cases
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance

  • Packing & Delivery


* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
