LQ15V00020F1 LQ15V00020F5 Excavator Final Drive For Kobelco SK260-8 SK235 Travel Motor

I appreciate the help from Paul, he's prefessional and knows exactly what parts I need. My CAT has gone back to work without any problem.

—— Raphael

Got the final drive and its beautiful I think. We've have it assembled in our Hitachi ZX330 excavator, my machines goes to work again now. Many thanks

—— Kevin

I'm Online Chat Now

LQ15V00020F1 LQ15V00020F5 Excavator Final Drive For Kobelco SK260-8 SK235 Travel Motor

China LQ15V00020F1 LQ15V00020F5 Excavator Final Drive For Kobelco SK260-8 SK235 Travel Motor supplier
LQ15V00020F1 LQ15V00020F5 Excavator Final Drive For Kobelco SK260-8 SK235 Travel Motor supplier LQ15V00020F1 LQ15V00020F5 Excavator Final Drive For Kobelco SK260-8 SK235 Travel Motor supplier

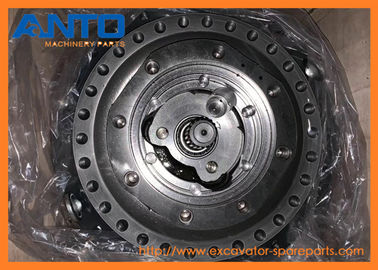

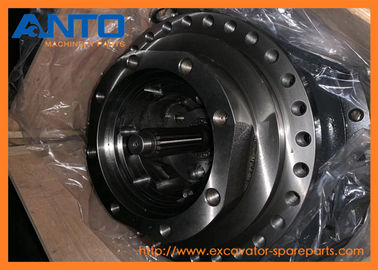

Large Image :  LQ15V00020F1 LQ15V00020F5 Excavator Final Drive For Kobelco SK260-8 SK235 Travel Motor

Product Details:

Place of Origin: China
Brand Name: ANTO
Certification: ISO9001
Model Number: SK250 260-8

Payment & Shipping Terms:

Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Wooden box for heavy parts, paper carton for light parts
Delivery Time: 3-7 working days
Payment Terms: D/P, T/T, Western Union, MoneyGram, D/A, L/C
Supply Ability: 568 PCS per week
Contact Now
Detailed Product Description
Category: Excavator Final Drive Parts Machine Model: SK260 SK235
Parts No.: LQ15V00020F1 LQ15V00020F5 Parts Name: Final Drive Assy
Warranty: 3/6 Months Package: Standard Export Carton



  • LQ15V00020F1 LQ15V00020F5 Excavator Final Drive Used For Kobelco SK260-8 SK235 Travel Motor




  • Spec Sheet



Excavator spare parts name SK260 SK235 excavator final drive
Equipment Model SK260-8 SK235-1
Parts Category Excavator final drive parts
Spare parts Condition Brand new
MOQ of order(PCS, SET) 1
Parts Availability In stock
Delivery Lead time 1-3 days




  • Application



HEAVY EQUIPMENT SK235SR-1E SK235SR-2 SK235SRLC-2 SK260 Kobelco

  • Parts Diagram

LQ15V00020F1 LQ15V00020F5 Excavator Final Drive For Kobelco SK260-8 SK235 Travel Motor

Pos. Part No QTY Parts name Comments
. . LQ15V00020F1 [1] HYDRAULIC MOTOR SM ASSY, PROPEL Superseded by part number: LQ15V00020F5
1 NA [1] NOT SERVICED FOR FLANGE
2 NA [1] NOT SERVICED FOR PLATE
3 NA [1] NOT SERVICED FOR SPOOL
4 NA [2] NOT SERVICED FOR VALVE,CHECK
5 NA [2] NOT SERVICED FOR SPRING
6 NA [2] NOT SERVICED FOR PLUG
7 ZD12P02100 [2] O-RING,2.4mm Thk x 20.8mm ID, 90 Duro KOB O-Ring -- ID 20.80 ± 0.23 x OD 25mm
8 2436U1027S203 [2] SEAT/SLOT KOB
9 LQ15V00020S009 [2] SPRING SM
10 2436U1027S205 [2] SEAT/SLOT KOB
11 NA [2] NOT SERVICED FOR CAP
12 ZD12G04500 [2] O-RING,44.40mm ID x 50.60mm OD x 3.10mm KOB ID 44.40 ± 0.41 x OD 50mm
13 ZS23C12040 [8] SCREW,Hex Socket Head, M12 x 40mm KOB M12x1.75x40mm
14 2436U281S37 [2] BALL KOB
15 2441U792S18 [2] SPRING SM
16 2441U792S19 [2] PLUG SM
17 ZD12P00800 [2] O-RING,1.9mm Thk x 7.8mm ID, 90 Duro KOB ID 7.8mm x OD 9.7mm
18 YN23V00003F1 [2] VALVE PRESSURE RELIE KOB SEE (HC38)
19 NA [8] NOT SERVICED FOR PLUG
20 NA [1] NOT SERVICED FOR SPOOL
21 NA [1] NOT SERVICED FOR SPOOL
22 LQ15V00007S027 [1] SPRING KOB
23 2441U792S141 [1] PLUG KOB
24 ZD12P01800 [2] O-RING KOB ID 17.8mm x OD 20.2mm
25 LQ15V00007S030 [1] GUIDE PIN KOB
26 LQ15V00007S031 [1] PLUG KOB
27 2441U983S27 [1] WASHER KOB
28 NA [2] NOT SERVICED FOR ORIFICE
29 NA [4] NOT SERVICED FOR PLUG
30 ZD12P01100 [4] O-RING KOB ID 10.8mm x OD 13.2mm
31 NA [3] NOT SERVICED FOR ORIFICE
32 NA [1] NOT SERVICED FOR ORIFICE
33 LQ15V00007S042 [1] SHAFT KOB
34 NA [1] NOT SERVICED FOR BLOCK,CYLINDER
35 NA [9] NOT SERVICED FOR PISTON ASSY
36 NA [1] NOT SERVICED FOR PLATE,RETAINER
37 NA [1] NOT SERVICED FOR HOLDER,RETAINER
38 YN15V00005S114 [1] SNAP RING KOB
39 YN15V00005S115 [1] SPRING SEAT KOB
40 YN15V00005S116 [1] SPRING KOB
41 YN15V00005S117 [1] RING KOB
42 2441U792S119 [3] PIN KOB
43 LQ15V00020S043 [1] PLATE SM
44 2441U792S110 [2] BALL KOB
45 NA [2] NOT SERVICED FOR PISTON ASSY
46 LQ15V00007S055 [1] BALL BEARING KOB
47 LQ15V00007S056 [1] BALL BEARING KOB
48 LQ15V00020S048 [1] PIN SM
49 ZS23C14035 [10] SCREW,Hex Socket Head, M14 x 35mm KOB M14x2.0x35mm
50 LQ15V00020S050 [1] SEAL SM OIL SEAL
51 LQ15V00020S051 [3] PLATE SM DISK Superseded by part number: LQ15V00031R940
52 2441U983S126 [2] PLATE KOB
53 LQ15V00020S053 [1] PISTON SM BRAKE
54 2441U984S42 [1] O-RING KOB
55 2441U983S130 [1] O-RING KOB
56 2441U792S130 [6] SPRING KOB
57 YN15V00005S128 [4] PIN KOB
58 YN15V00005S139 [2] SPRING KOB
59 LQ15V00020S059 [1] PLATE SM VALVE
60 ZD12P01000 [4] O-RING KOB ID 09.80 ± 0.17 x OD 13mm
61 2441U802S30 [1] O-RING KOB
62 NA [1] NOT SERVICED FOR NAME PLATE
63 NA [2] NOT SERVICED FOR SCREW,DRIVE
64 NA [2] NOT SERVICED FOR PLUG
65 NA [1] NOT SERVICED FOR PLUG
66 NA [1] NOT SERVICED FOR PLUG
67 LQ15V00020S067 [2] SEAL SM SEAL, FLOATING
68 LQ15V00007S077 [2] BEARING KOB
69 NA [1] NOT SERVICED FOR
70 NA [1] NOT SERVICED FOR SHIM (0.05)
71 LQ15V00020S071 [1] RUBBER RING SM HOLDER
72 LQ15V00007S081 [8] FRICTION WASHER KOB
73 LQ15V00007S082 [8] SCREW KOB
74 LQ15V00020S074 [4] PLATE SM THRUST
75 LQ15V00007S084 [4] RACE KOB
76 LQ15V00020S076 [4] NEEDLE BEARING SM NEEDLE
77 LQ15V00007S086 [4] DRIVEN GEAR KOB
78 LQ15V00020S078 [4] PLATE SM THRUST
79 LQ15V00007S088 [4] SCREW KOB
80 LQ15V00020S080 [1] GEAR SM SUN
81 LQ15V00007S090 [1] RING KOB
82 LQ15V00020S082 [1] CARRIER SM HOLDER
83 LQ15V00007S092 [3] PLATE KOB
84 LQ15V00020S084 [3] RACE SM INNER
85 LQ15V00020S085 [3] NEEDLE BEARING SM NEEDLE
86 LQ15V00020S086 [3] GEAR SM
87 LQ15V00007S096 [3] PLATE KOB
88 LQ15V00020S088 [1] PLATE SM THRUST
89 LQ15V00007S098 [3] SCREW KOB
90 LQ15V00020S090 [1] GEAR SM DRIVE
91 NA [1] NOT SERVICED FOR PLATE,THRUST
92 LQ15V00007S101 [1] COVER KOB
93 ZS28C10016 [16] SCREW,Hex Socket Head, M10 x 16mm KOB M10x1.50x16mm
94 LQ15V00007S103 [3] PLUG KOB
95 ZD12P02400 [3] O-RING KOB ID 23.70 ± 0.24 x OD 30mm
96 LQ15V00007S105 [4] PIN KOB
K. LQ15V00020R100 [1] KIT SM REPAIR, CONSISTS OF ITEM 7X2, 12X2, 17X2, 24X2, 30X4, 50X1 54X1, 55X1, 60X4, 61X1
K. LQ15V00020R200 [1] KIT SM REPAIR, CONSISTS OF ITEM 67X2, 95X3 Superseded by part number: LQ15V00031R200
K. LQ15V00020R300 [1] KIT SM REPAIR, CONSISTS OF ITEM 1X1, 45X2
K. LQ15V00020R400 [1] KIT SM REPAIR, CONSISTS OF ITEM 2X1, 3X1, 4X2, 5X2, 6X2, 7X2, 19X8, 20X1, 21X1, 28X2, 29X4, 30X4, 31X3, 32X1
K. 2441U792S13 [1] CAP KOB REPAIR KIT, CONSISTS OF ITEM 11X2, 12X2, 13X8, 14X2, 15X2, 16X2 17X2
K. LQ15V00020R600 [1] BLOCK KOB REPAIR KIT, CONSISTS OF ITEM 34X1, 35X9, 36X1, 37X1, 38X1, 39X1, 40X1, 41X1, 42X3
K. LQ15V00007R700 [1] REPAIR KIT KOB CONSISTS OF ITEM 70X1
K. LQ15V00007R800 [1] REPAIR KIT KOB CONSISTS OF ITEM 91X1
K. LQ15V00020R900 [1] REDUCER KOB REPAIR KIT, CONSISTS OF ITEM 67X2, 68X2, 69X1, 70X1, 71X1, 72X8, 73X8, 74X4, 75X4, 76X4, 77X4, 78X4



  • Description


Engine parts are designed precisely to work in engine system to meet the prime product requirements for machine performance, reliability, durability, operating costs and productivity.


  • Advantage



1. The reducer driving system parts are built to fit to the machine original system.

2. The reducer driving system are supplied strictly according to the genuine parts catalog.

3. All the reducer driving system are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including case carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of filters that cover excavator. HITACHI KOMATSU HYUNDAI CAT VOLVO DOOSAN KOBELCO SUMITOMO KATO JCB




  • Warranty


1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below cases
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance


  • Packing & Delivery


* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
