9260804 9262916 9260805 Excavator Swing Gear Drive Device Gearbox for Hitachi ZX180-3 ZX200-3 ZX210-3

China 9260804 9262916 9260805 Excavator Swing Gear Drive Device Gearbox for Hitachi ZX180-3 ZX200-3 ZX210-3 supplier
9260804 9262916 9260805 Excavator Swing Gear Drive Device Gearbox for Hitachi ZX180-3 ZX200-3 ZX210-3 supplier 9260804 9262916 9260805 Excavator Swing Gear Drive Device Gearbox for Hitachi ZX180-3 ZX200-3 ZX210-3 supplier 9260804 9262916 9260805 Excavator Swing Gear Drive Device Gearbox for Hitachi ZX180-3 ZX200-3 ZX210-3 supplier

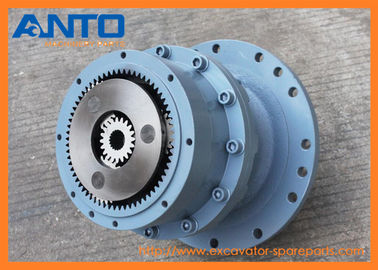

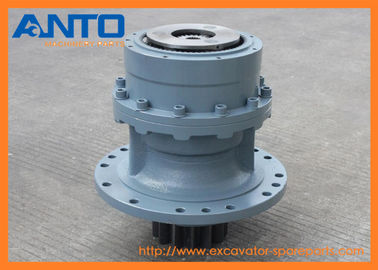

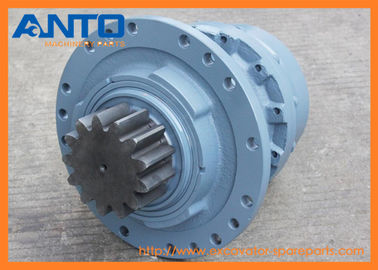

Large Image :  9260804 9262916 9260805 Excavator Swing Gear Drive Device Gearbox for Hitachi ZX180-3 ZX200-3 ZX210-3

Product Details:

Place of Origin: China
Brand Name: ANTO
Certification: ISO9001
Model Number: ZX200-3

Payment & Shipping Terms:

Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Wooden box for heavy parts, paper carton for light parts
Delivery Time: 3-7 working days
Payment Terms: D/P, T/T, Western Union, MoneyGram, D/A, L/C
Supply Ability: 100-2000
Contact Now
Detailed Product Description
Category: Excavator Swing Gear Parts Machine Model: ZX200-3
Parts NO.: 9260804 9262916 9260805 Material: Forged, Steel
Warranty: 3/6 Months Package: Standard Export Carton



  • 9260804 9262916 9260805 Excavator Swing Drive Device Gearbox Applied To Hitachi ZX180-3 ZX200-3 ZX210-3





  • Spec Sheet



Excavator spare parts name Swing device gearbox
Equipment Model ZX200-3
Parts Category Excavator Swing gear
Spare parts Condition Brand new
MOQ of order(PCS, SET) 1
Parts Availability In stock
Delivery Lead time 1-3 days




  • Application



MA200 . ZX160LC-3 . ZX160LC-3-AMS . ZX160LC-3-HCME . ZX170W-3 . ZX170W-3-AMS . ZX170W-3DARUMA . ZX180LC-3 . ZX180LC-3-AMS . ZX180LC-3-HCME . ZX190W-3 . ZX190W-3-AMS . ZX190W-3DARUMA . ZX200-3 . ZX200-3-HCMC . ZX200-5G . ZX200LC-5G . ZX210-3-AMS . ZX210-3-HCME . ZX210H-3 . ZX210H-3-HCMC . ZX210H-5G . ZX210K-3 . ZX210K-3-HCMC . ZX210K-5G . ZX210LC-3-HCMC . ZX210LCH-5G . ZX210LCK-3-HCMC . ZX210LCK-5G . ZX210N-3-AMS . ZX210N-3-HCME . ZX210W-3 . ZX210W-3-AMS . ZX210W-3-HCMC . ZX210W-3DARUMA . ZX220W-3 . ZX240-3-AMS . ZX240N-3-HCME . Hitachi



  • Parts Diagram

9260804 9262916 9260805 Excavator Swing Gear Drive Device Gearbox for Hitachi ZX180-3 ZX200-3 ZX210-3



ENTIRE GROUP T.MISSION (SWING):

9260804 I[1] -
T.MISSION (SWING) 9262916 <for assembly of machine>
9262916[1] -
T.MISSION (SWING) <for transportation>
00.1033370[1] -
HOUSING
01.2053199[1] -
SHAFT;PROP.
02.3083742[1] -
SLEEVE
03.A811120[1] -
O-RING
04.4402481[1] -
BRG.;ROL.
06.4411535[1] -
SEAL;OIL
07.4402637 Y[1] -
BRG.;ROL. 4667150
07.4667150[1] -
BRG.;ROL.
08.3099830[1] -
NUT
09.4474191[1] -
PLATE;LOCK
10.J901016[2] -
BOLT
11.1031849[1] -
CARRIER
12.4187590[1] -
PLATE;THRUST
13.3099815[3] -
GEAR;PLANETARY
14.4336929[3] -
PLATE;THRUST
15.4488904[3] -
PIN
16.4027427[3] -
PIN;SPRING
17.4438593[6] -
BRG.;NEEDLE
18.3099795[1] -
GEAR;SUN
20.1032548[1] -
GEAR;RING
21.M341645[12] -
BOLT;SOCKET
23.1031817[1] -
CARRIER
24.4403371[1] -
PLATE;THRUST
25.3102045[3] -
GEAR;PLANETARY
26.4404506[3] -
BRG.;NEEDLE
27.4403082[3] -
PLATE;THRUST
28.4336923[3] -
PIN
29.4051262[3] -
PIN;SPRING
30.3084056[1] -
GEAR;SUN
31.3089362[1] -
PIPE
32.94-2012[1] -
PLUG
33.4445354[2] -
PLUG




  • Description



The Swing drive reducer gearbox rotates the top of the Excavator on the chassis together with the slewing gear bearing.


Attributes: Heavy Duty Swing Drives are designed to be rebuilt and reused. The below following gear components are included in swing drive: sun gear, planetary gear, needle bearing, roller bearing, carrier, pinion shaft, pinion gear, oil seal, ring gear, swing housing case.



  • Advantage



1. The gear parts are built to fit to the genuine drive gearbox system.

2. The gear parts are supplied strictly according to the genuine parts catalog.

3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including case carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI CAT VOLVO DOOSAN KOBELCO SUMITOMO KATO JCB




  • Warranty



1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.



2. Warranty type: replacement of the parts that have quality problem.



3. Warranty is not valid for below cases

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance



  • Packing & Delivery



* Strong carton or wooden box for gear components. Wooden box for gearbox assembly

* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
