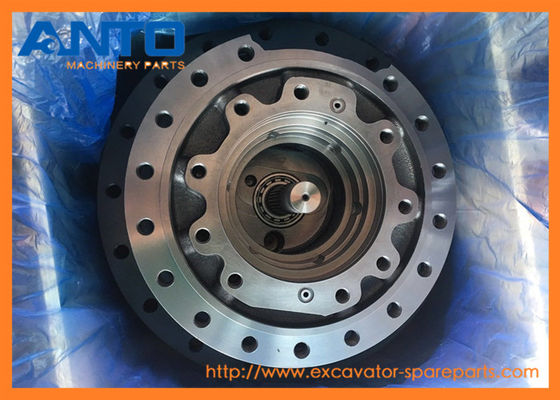

9261222 9233692 Final Drives For Mini Excavators Hitachi ZX200-3 ZX210-3 ZX200-5G Travel Device

9261222 9233692 Final Drives For Mini Excavators Hitachi ZX200-3 ZX210-3 ZX200-5G Travel Device
9261222 9233692 Final Drives For Mini Excavators Hitachi ZX200-3 ZX210-3 ZX200-5G Travel Device

Large Image :  9261222 9233692 Final Drives For Mini Excavators Hitachi ZX200-3 ZX210-3 ZX200-5G Travel Device

Product Details:
Place of Origin: China
Brand Name: OEM
Model Number: ZX200-3
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Wooden box for heavy parts, paper carton for light parts
Delivery Time: 3-7 working days
Payment Terms: D/P, T/T, Western Union, MoneyGram, D/A, L/C
Supply Ability: 100-2000
Contact Now
Detailed Product Description
Category: Excavator Travel Gear Parts Machine Model: ZX200-3
Parts NO.: 9261222 9233692 Material: Forged, Steel
Warranty: 3/6 Months Package: Standard Export Carton
High Light:

final drive parts

,

excavator gearbox



  • 9261222 9233692 Excavator Final Drive Used For Hitachi ZX200-3 ZX210-3 ZX200-5G Travel Device





  • Spec Sheet



Excavator spare parts name Travel device gearbox
Equipment Model ZX200-3
Parts Category Excavator Final Drive Parts
Spare parts Condition Brand new
MOQ of order(PCS, SET) 1
Parts Availability In stock
Delivery Lead time 1-3 days




9261222 9233692 Final Drives For Mini Excavators Hitachi ZX200-3 ZX210-3 ZX200-5G Travel Device 0


  • Application



ZH200-A . ZH200LC-A . ZX200-3 . ZX200-3G . ZX200-5G . ZX200LC-5G . ZX210-3-AMS . ZX210-3-HCME . ZX210H-3 . ZX210H-3G . ZX210H-5G . ZX210K-3 . ZX210K-3G . ZX210K-5G . ZX210LC-3G . ZX210LCH-5G . ZX210LCK-5G . ZX210N-3-AMS . ZX210N-3-HCME . ZX240-3-AMS . ZX240N-3-HCME . Hitachi







  • Parts Diagram

9261222 9233692 Final Drives For Mini Excavators Hitachi ZX200-3 ZX210-3 ZX200-5G Travel Device 1


9233692 I[1] -
TRAVEL DEVICE 9261222 <for assembly of machine> .
9261222[1] -
TRAVEL DEVICE <for transportation> .
01.9257254 I[1] -
MOTOR;OIL 9258325 <for assembly of machine> .
01.9258325[1] -
MOTOR;OIL <for transportation> .
02.4634693[1] -
SEAL;GROUP .
03.4246793[2] -
BRG.;ROL. .
04.1033090[1] -
DRUM .
05.1033091[1] -
SPROCKET
06.J932055[18] -
BOLT
07.A590920[18] -
WASHER;SPRING .
08.3086531[1] -
NUT
10.4436242[1] -
PIN;KNOCK .
12.1025875[1] -
CARRIER
13.3084353[3] -
GEAR;PLANETARY .
14.4438593[6] -
BRG.;NEEDLE .
15.4284521[6] -
PLATE;THRUST .
16.4116309[3] -
PIN;SPRING .
17.4315838[3] -
PIN .
18.3082156[1] -
GEAR;SUN .
20.1025787[1] -
GEAR;RING
21.J931640[24] -
BOLT .
23.2042432[1] -
CARRIER .
24.4401293[2] -
SPACER
25.3082155[3] -
GEAR;PLANETARY .
26.4438592[3] -
BRG.;NEEDLE .
27.4192982[6] -
PLATE;THRUST .
28.4402086[3] -
PIN .
29.4192020[3] -
PIN;SPRING .
30.3082149[1] -
GEAR;SUN .
32.2050691[1] -
CARRIER .
33.3100544[3] -
GEAR;PLANETARY .
34.4406589[3] -
BRG.;NEEDLE .
35.4192910[6] -
PLATE;THRUST .
36.4210853[3] -
PIN .
37.4173093[3] -
PIN;SPRING
38.2050692[1] -
SHAFT;PROP. .
40.2034833[1] -
COVER .
41.4478346[1] -
PIN;STOPPER .
42.4699148[12] -
BOLT;SEMS .
43.4245797[3] -
PLUG .
46.+++++++[1] -
NAME-PLATE
47.M492564[2] -
SCREW;DRIVE


  • Description



The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.


Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.





  • Advantage



1. The gear parts are built to fit to the genuine drive gearbox system.

2. The gear parts are supplied strictly according to the genuine parts catalog.

3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB




  • Warranty



1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.



2. Warranty type: replacement of the parts that have quality problem.



3. Warranty is not valid for below s

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance



  • Packing & Delivery



* Strong carton or wooden box for gear components. Wooden box for gearbox assembly

* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
