XKAH-01061 XJBN-00645 XJBN-00993 Excavator Final Drive Travel Reduction Gear for Hyundai R360LC-7

China XKAH-01061 XJBN-00645 XJBN-00993 Excavator Final Drive Travel Reduction Gear for Hyundai R360LC-7 supplier
XKAH-01061 XJBN-00645 XJBN-00993 Excavator Final Drive Travel Reduction Gear for Hyundai R360LC-7 supplier XKAH-01061 XJBN-00645 XJBN-00993 Excavator Final Drive Travel Reduction Gear for Hyundai R360LC-7 supplier

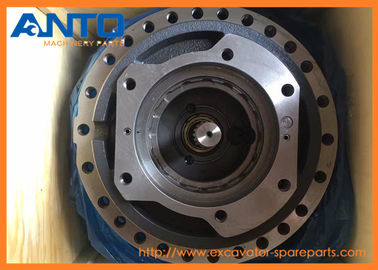

Large Image :  XKAH-01061 XJBN-00645 XJBN-00993 Excavator Final Drive Travel Reduction Gear for Hyundai R360LC-7

Product Details:

Place of Origin: China
Brand Name: ANTO
Certification: ISO9001
Model Number: R360LC-7

Payment & Shipping Terms:

Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Wooden box for heavy parts, paper carton for light parts
Delivery Time: 3-7 working days
Payment Terms: D/P, D/A, T/T, L/C, Western Union, MoneyGram
Supply Ability: 100-2000
Contact Now
Detailed Product Description
Product Name: Travel Gear Excavator Model: R360LC-7
Parts Number: XKAH-01061 XJBN-00645 XJBN-00993 Warranty: 6 Months
Category: Excavator Final Drive Packing: Standard Wooden Box

  • XKAH-01061 XJBN-00645 XJBN-00993 Travel Reduction Gear Applied To Hyundai R360LC-7 Excavator Final Drive





  • Spec Sheet



Excavator spare parts name Travel reduction gear
Equipment Model R360LC-7
Parts Category excavator final drive
Spare parts Condition Brand new
MOQ of order(PCS, SET) 1
Parts Availability In stock
Delivery Lead time 1-3 days





  • Application



EXCAVATOR R360LC-7 R370LC-7  Hyundai

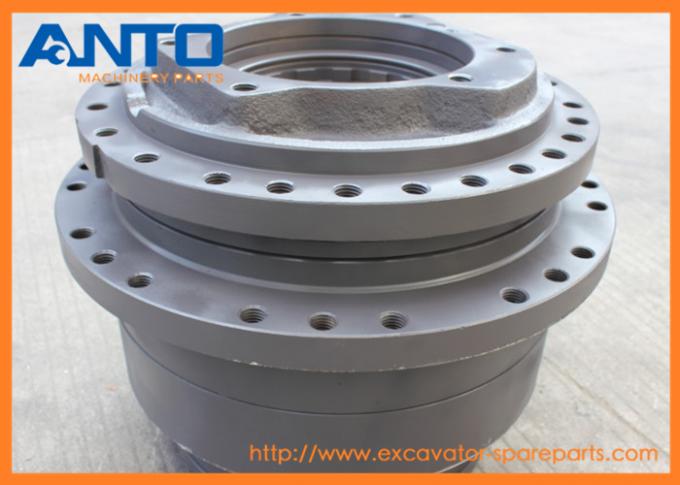

  • Product photos

XKAH-01061 XJBN-00645 XJBN-00993 Excavator Final Drive Travel Reduction Gear for Hyundai R360LC-7



  • Parts Diagram:



*-2 XKAH-01061 T/REDUCTION GEAR 1
1 XKAH-00987 GEAR-RING 1
2 XKAH-00988 HOUSING 1
4 XKAH-00989 COVER-SIDE 1
S005 XKAH-00990 CARRIER NO.1 1
S006 XKAH-00991 CARRIER NO.2,B 1
9 XKAH-00992 SUN GEAR NO.1 1
10 XKAH-00993 SUN GEAR NO.2 1
11 XKAH-00994 SUN GEAR NO.3 1
S012 XKAH-00995 PLANETARY GEAR NO.1 3
S013 XKAH-00996 PLANETARY GEAR B NO.2 3
S014 XKAH-00997 PLANETARY GEAR NO.3 4
S016 XKAH-00998 PIN NO.2,B 3
S017 XKAH-00999 PIN NO.3 4
S018 XKAH-01000 SIDE PLATE E 3
S019 XKAH-01001 SIDE PLATE A 6
S020 XKAH-01002 SIDE PLATE F 8
S021 XKAH-01003 NEEDLE BEARING 3
S022 XKAH-01004 CAGE-NEEDLE 3
S023 XKAH-01005 CAGE-NEEDLE 4
24 XKAH-01006 RING-INNER 3
25 XKAH-01007 BUSHING-FLOATING 4
26 XKAH-01008 THRUST RING 60 2
S027 XKAH-01009 THRUST RING 90 1
29 XKAH-01010 BOLT-SOCKET 28
30 XKAH-00210 BOLT-SOCKET 12
32 XKAH-00032 PLUG-RO 3
33 XKAH-01011 BEARING-ANGULAR 2
34 XKAH-01012 SEAL-FLOATING 1
35 XKAH-01013 SHIM 1
S036 XKAH-01014 PIN-SPRING 3
S037 XKAH-01015 RING-SNAP 4
S044 XKAH-01016 RING-SNAP 3
45 XKAH-01017 CLIP 1
46 XKAH-01018 CLIP 1
47 XKAH-01019 RING-NUT 1
51 XKAH-00985 NAME PLATE 1
52 XKAH-00986 RIVET SCREW 2
81 XKAH-01020 O-RING 1
82 XKAH-01021 O-RING 1
83 XKAH-00035 O-RING 3
53 XKAH-01022 WASHER 1
54 XKAH-01023 SCREW-SET 6
11 XKAH-01024 SUB ASSY-NO.1 CARRIER 1
12 XKAH-01025 SUB ASSY-NO.2 CARRIER 1
13 XKAH-01026 SUB ASSY-SEAL 1







  • Description



The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.


Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.



  • Advantage



1. The gear parts are built to fit to the genuine drive gearbox system.

2. The gear parts are supplied strictly according to the genuine parts catalog.

3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including case carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI CAT VOLVO DOOSAN KOBELCO SUMITOMO KATO JCB




  • Warranty



1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.



2. Warranty type: replacement of the parts that have quality problem.



3. Warranty is not valid for below cases

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance



  • Packing & Delivery



* Strong carton or wooden box for gear components. Wooden box for gearbox assembly

* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
