31N4-15011 31N4-15012 31N4-15030 K3V63DTP1JHR-9COS Hydraulic Pump Used For Hyundai R140W-7

China 31N4-15011 31N4-15012 31N4-15030 K3V63DTP1JHR-9COS Hydraulic Pump Used For Hyundai R140W-7 supplier
31N4-15011 31N4-15012 31N4-15030 K3V63DTP1JHR-9COS Hydraulic Pump Used For Hyundai R140W-7 supplier 31N4-15011 31N4-15012 31N4-15030 K3V63DTP1JHR-9COS Hydraulic Pump Used For Hyundai R140W-7 supplier 31N4-15011 31N4-15012 31N4-15030 K3V63DTP1JHR-9COS Hydraulic Pump Used For Hyundai R140W-7 supplier

Large Image :  31N4-15011 31N4-15012 31N4-15030 K3V63DTP1JHR-9COS Hydraulic Pump Used For Hyundai R140W-7

Product Details:

Place of Origin: China
Brand Name: ANTO
Certification: ISO9001
Model Number: R140W-7

Payment & Shipping Terms:

Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Wooden box for heavy parts, paper carton for light parts
Delivery Time: 1-3 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100-2000
Contact Now
Detailed Product Description
Category: Excavator Hydraulic Parts Part NO.: 31N4-15011 31N4-15012 31N4-15030
Machinery Model: R140W-7 Parts Name: Hydraulic Main Pump
Kwasaki Number: K3V63DTP1JHR-9COS Item Condition: New 100%, Genuine

  • 31N4-15011 31N4-15012 31N4-15030 K3V63DTP1JHR-9COS Hydraulic Pump Used For Hyundai R140W-7



 Product description



Excavator spare parts name Hydraulic main pump
Equipment Model R140W-7
Parts Category Excavator Hydraulic Spare parts
Spare parts Condition Genuine
MOQ of order(PCS, SET)
Parts Availability In stock
Part NO. K3V63DTP
Apply for  Kobelco,Hyundai




* 31N4-15011 MAIN PUMP 1 #0540 STD
* 31N4-15012 MAIN PUMP 1 #0541 STD
* 31N4-15030 MAIN PUMP 1 #0285 LOW NOISE
*-1 XJBN-00848 MAIN PUMP UNIT 1 #0389 STD
*-1 XJBN-01028 MAIN PUMP UNIT 1 #0390
*-1 XJBN-00927 MAIN PUMP UNIT 1 #0285 LOW NOISE
111 XJBN-00432 SHAFT(F)-DRIVE 1

113 XJBN-00431 SHAFT(R)-DRIVE 1

116 XJBN-00804 GEAR-1ST 1

123 XJBN-00429 BEARING-ROLLER 2

124 XJBN-00428 BEARING-NEEDLE 2

127 XJBN-00806 SPACER-BEARING 4

S141 XJBN-00807 BLOCK 2

S151 XJBN-00425 PISTON 18

S152 XJBN-00424 SHOE 18

153 XJBN-00423 PLATE-SET 2

156 XJBN-00422 BUSHING-SPHERICAL 2

157 XJBN-00421 SPRING-CYLINDER 18

211 XJBN-00420 PLATE-SHOE 2

S212 XJBN-00419 PLATE-SWASH 2

S214 XJBN-00418 BUSHING-TILTING 2

251 XJBN-00417 SUPPORT 2

261 XJBN-00416 COVER(F)-SEAL 1

262 XJBN-00810 COVER-RR 1

271 XJBN-00415 CASING-PUMP 2

312 XJBN-00812 BLOCK-VALVE 1

S313 XJBN-00413 PLATE(R)-VALVE 1

S314 XJBN-00412 PLATE(L)-VALVE 1

401 XJBN-00411 SCREW 8

406 XJBN-00410 SCREW 8

466 XJBN-00356 PLUG 2

467 XJBN-00409 PLUG 4

468 XJBN-00237 PLUG 2

490 XJBN-00032 PLUG 15

S531 XJBN-00408 PIN-TILTING 2

532 XJBN-00407 PISTON-SERVO 2

534 XJBN-00406 STOPPER(L) 2

535 XJBN-00405 STOPPER(S) 2

S548 XJBN-00404 PIN-FEED BACK 2

702 XJBN-00403 O-RING 2
STD
702 XJBN-00888 O-RING 2 #0285 LOW NOISE
710 XJBN-00402 O-RING 2

711 XJBN-00095 O-RING 1

717 XJBN-00401 O-RING 2

719 XJBN-00400 O-RING 2

724 XJBN-00361 O-RING 18

725 XJBN-00362 O-RING 2

727 XJBN-00233 O-RING 2

728 XJBN-00097 O-RING 4

732 XJBN-00879 O-RING 2
STD
732 XJBN-00820 O-RING 2 #0285 LOW NOISE
774 XJBN-00399 SEAL-OIL 1

789 XJBN-00398 RING-BACK UP 2

792 XJBN-00397 RING-BACK UP 2

808 XJBN-00396 NUT-HEX 4

824 XJBN-00395 RING-SNAP 2

885 XJBN-00394 PIN-VALVE PLATE 2

886 XJBN-00365 PIN-SPRING 4

901 XJBN-00393 BOLT-EYE 2

953 XJBN-00105 SCREW-SET 2

954 XJBN-00392 SCREW-SET 2

981 XJBN-00156 NAME PLATE 1
STD
981 XJBN-00867 NAME PLATE 1 #0285 LOW NOISE
983 XJBN-00341 PIN 2

*-2
REGULATOR ASSY 1
NOT
*-2
REGULATOR ASSY 1
NOT
*-5 XJBN-00975 PTO UNIT 1 #0389 STD
*-5 XJBN-01018 PTO UNIT 1 #0390 STD
*-5 XJBN-00926 PTO UNIT 1 #0285 LOW NOISE
5 XJBN-00828 PTO ASSY 1 #0389 STD/LOW NOISE
5 XJBN-01020 PTO ASSY 1 #0390 STD
5 XJBN-00828 PTO ASSY 1 #0390 LOW NOISE
5-1 XJBN-00160 SCREW-SOCKET 2

5-2 XJBN-00725 SOCKET-FLANGE 4

5-3 XJBN-00357 PLUG 1

5-4 XJBN-00837 O-RING 1

5-5 XJBN-00402 O-RING 1

5-6 XJBN-00363 O-RING 1

5-7 XJBN-01023 PIN-SPRING 1 #0390 STD
*-51
GEAR PUMP 1 #0001 NOT
S XJBN-00437 PISTON SUB ASSY 1

S XJBN-00798 CYLINDER SUB ASSY-RH 1
SEE ILLUST
S XJBN-00799 CYLINDER SUB ASSY-LH 1
SEE ILLUST
S XJBN-00434 SWASH PLATE ASSY 1
SEE ILLUST
S XJBN-00433 TILTING PIN ASSY 1
SEE ILLUST

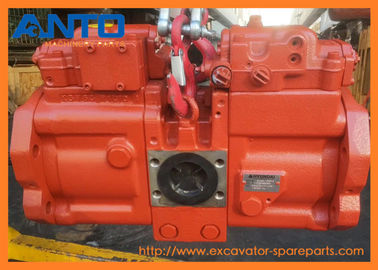

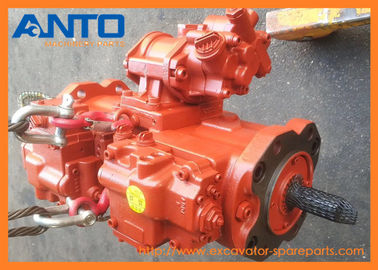

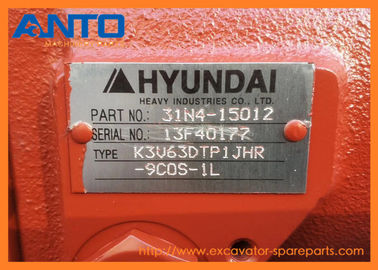

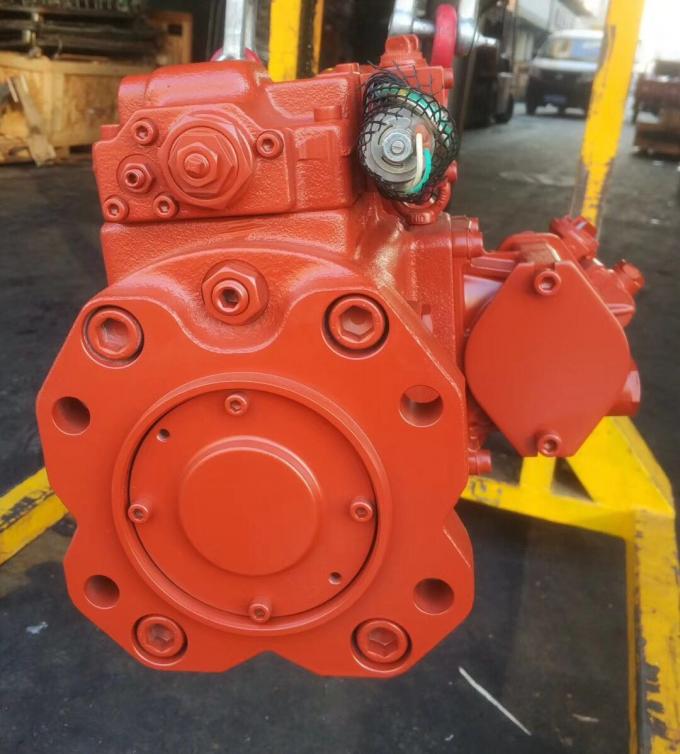

  • Picture show

31N4-15011 31N4-15012 31N4-15030 K3V63DTP1JHR-9COS Hydraulic Pump Used For Hyundai R140W-7
