YN32W00004F1 Excavator Swing Reduction Gear Fit For Kobelco SK200-6 SK210-6

I appreciate the help from Paul, he's prefessional and knows exactly what parts I need. My CAT has gone back to work without any problem.

—— Raphael

Got the final drive and its beautiful I think. We've have it assembled in our Hitachi ZX330 excavator, my machines goes to work again now. Many thanks

—— Kevin

I'm Online Chat Now

YN32W00004F1 Excavator Swing Reduction Gear Fit For Kobelco SK200-6 SK210-6

China YN32W00004F1 Excavator Swing Reduction Gear Fit For Kobelco SK200-6 SK210-6 supplier
YN32W00004F1 Excavator Swing Reduction Gear Fit For Kobelco SK200-6 SK210-6 supplier YN32W00004F1 Excavator Swing Reduction Gear Fit For Kobelco SK200-6 SK210-6 supplier

Large Image :  YN32W00004F1 Excavator Swing Reduction Gear Fit For Kobelco SK200-6 SK210-6

Product Details:

Place of Origin: China
Brand Name: ANTO
Certification: ISO9001
Model Number: SK200-6

Payment & Shipping Terms:

Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Wooden box for heavy parts, paper carton for light parts
Delivery Time: 3-7 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100-2000
Contact Now
Detailed Product Description
Category: Excavator Swing Gearbox Excavator Type: Crawler Excavator
Excavator Brand: Kobelco Model NO.: YN32W00004F1
Weight: 180 KG Packing: Wooden Box



  • YN32W00004F1 Excavator Swing Reduction Gear Fit For Kobelco SK200-6 SK210-6





  • Description



The Swing drive reducer gearbox rotates the top of the Excavator on the chassis together with the slewing gear bearing.


Attributes: Heavy Duty Swing Drives are designed to be rebuilt and reused. The below following gear components are included in swing drive: sun gear, planetary gear, needle bearing, roller bearing, carrier, pinion shaft, pinion gear, oil seal, ring gear, swing housing case.



  • Spec Sheet



Excavator spare parts name Swing reducer
Equipment Model SK200-6
Parts Category excavator swing gear
Spare parts Condition Brand new
MOQ of order(PCS, SET) 1
Parts Availability In stock
Delivery Lead time 1-3 days

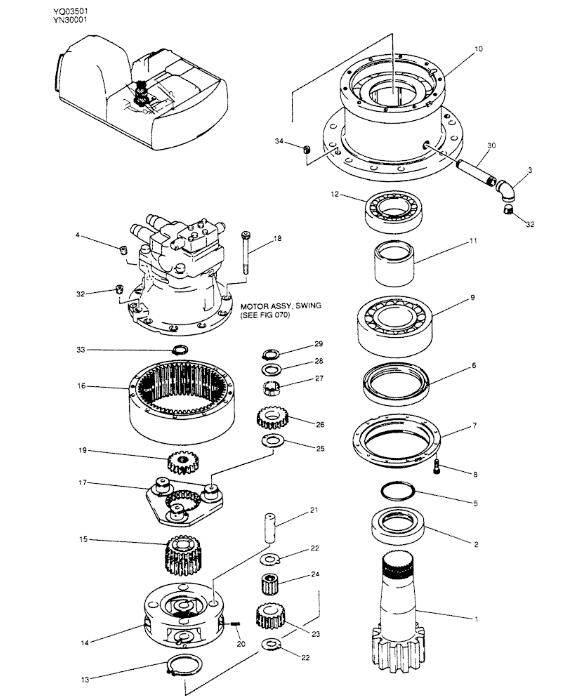

  • Parts Diagram



YN32W00004F1 Excavator Swing Reduction Gear Fit For Kobelco SK200-6 SK210-6


. .YN32W00004F1
MOTO-REDUCTION GEAR KOB SWING .
. .YN32W00004F1R
REMAN-MOTO REDUCTION KOB SK200LC-6 - DYNAMIC ACERA, ASN YQ03501, .
. .YN32W00004F1C
CORE-MOTO-REDUCTION UNIT KOB Return Number .
1.YN32W01003P1
PINION SHAFT KOB
2.YN32W01004P1
SLEEVE KOB
4.ZE82T08000
PLUG KOB 1/2" PT
5.ZD11G10000
O-RING,99.40mm ID x 105.60mm OD x 3.10mm KOB
6.YN32W01034P1
OIL SEAL KOB
7.YN32W01005P1
RETAINER KOB
8.ZS23C08025
SCREW,Hex Socket Head, M8 x 25mm KOB M08x1.25x25mm .
9.YN32W01029P1
SPHERICAL BEARING KOB Superseded by part number: R25P0047D9 .
10.YN32W01033P1
HOUSING KOB HOUSING
11.YN32W01015P1
SPACER KOB .
12.YN32W01030P1
SPHERICAL BEARING KOB Superseded by part number: 25Z804D18 .
13.ZR16X09000
RING KOB Retaining -- ID 84.50 x OD 108 x 3.0mm .
14.YN32W01011P1
SPIDER KOB
15.YN32W01006P1
SUN GEAR KOB
16.YN32W01012P1
RING GEAR KOB
17.YN32W01019F1
SPIDER ASSY. KOB .
18.ZS23C14130
CAPSCREW,Hex Socket Head, M14 x 130mm KOB SCREW M14x2.0x130mm
19.YN32W01007P1
SUN GEAR KOB .
20.ZP26D08025
PIN KOB Roll -- OD 08 x 25mm Long
21.YN32W01001P1
SHAFT KOB SHAFT
22.YN32W01027P1
THRUST WASHER KOB
23.YN32W01008P1
PINION KOB
24.YN32W01021P1
BEARING KOB .
25.YN32W01026P1
THRUST WASHER KOB
26.YN32W01002P1
PINION KOB
27.YN32W01022P1
ROLLER KOB .
28.YN32W01028P1
THRUST WASHER KOB
29.2418R2D25
RING KOB RETAINING Superseded by part number: ZR16X04000 .
30.2420T6698D2
PIPE KOB .
31.ZG31U12000
ELBOW KOB
32.ZE82T12000
PLUG KOB 3/4" PT
33.2418R2D22
RING KOB RETAINING Superseded by part number: ZR16X03500 .
34.ZS83C20020
SCREW KOB Set -- M20x2.50x20mm




  • Advantage



1. The gear parts are built to fit to the genuine drive gearbox system.

2. The gear parts are supplied strictly according to the genuine parts catalog.

3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including case carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI CAT VOLVO DOOSAN KOBELCO SUMITOMO KATO JCB




  • Warranty



1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.



2. Warranty type: replacement of the parts that have quality problem.



3. Warranty is not valid for below cases

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* rust



  • Packing & Delivery



* Strong carton or wooden box for gear components. Wooden box for gearbox assembly

* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
