YN32W00019F1 Excavator Swing Gear Reduction Unit Used For Kobelco SK200-8

China YN32W00019F1 Excavator Swing Gear Reduction Unit Used For Kobelco SK200-8 supplier

Large Image :  YN32W00019F1 Excavator Swing Gear Reduction Unit Used For Kobelco SK200-8

Product Details:

Place of Origin: China
Brand Name: ANTO
Certification: ISO9001
Model Number: SK200-8

Payment & Shipping Terms:

Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Wooden box for heavy parts, paper carton for light parts
Delivery Time: 3-7 working days
Payment Terms: T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability: 100-2000
Contact Now
Detailed Product Description
Parts No.: YN32W00019f1 Category: Excavator Swing Drive
Excavator Brand: Kobelco Packing: Wood Box
Warranty: 3/6 Months Weight: 180 KG



  • YN32W00019F1 Excavator Swing Gear Reduction Unit Used For Kobelco SK200-8



  • Description



The Swing drive reducer gearbox rotates the top of the Excavator on the chassis together with the slewing gear bearing.


Attributes: Heavy Duty Swing Drives are designed to be rebuilt and reused. The below following gear components are included in swing drive: sun gear, planetary gear, needle bearing, roller bearing, carrier, pinion shaft, pinion gear, oil seal, ring gear, swing housing case.



  • Spec Sheet



Excavator spare parts name Swing reducer
Equipment Model SK200-8 SK210-8
Parts Category excavator swing gear
Spare parts Condition Brand new
MOQ of order(PCS, SET) 1
Parts Availability In stock
Delivery Lead time 1-3 days

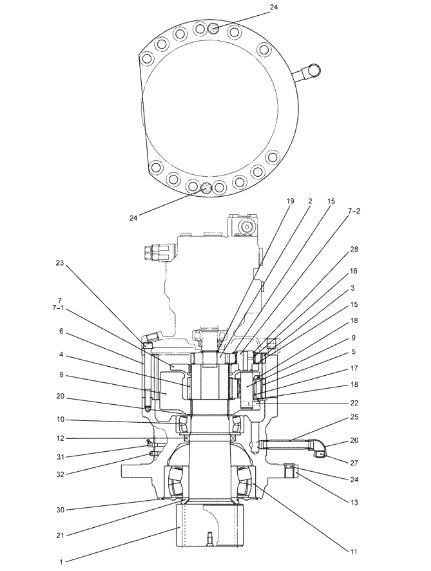

  • Parts Diagram



191-2693 199-4487 Excavator Swing Drive Gear Applied To CAT 325C 325D 322C 324D 329D


. .YN32W00019F1
GEAR REDUCTION UNIT SM REDUCTION ASSY (SWING) Superseded by part number: YN32W00022F2 .
1.YN32W01051P1
SHAFT SM .
2.YN32W01052P1
GEAR SM SUN
3.YN32W01053P1
GEAR SM PINION .
4.YN32W01054P1
GEAR SM SUN
5.YN32W01055P1
GEAR SM PINION
6.YN32W01056P1
RING GEAR SM GEAR
7.YN32W01057F1
CARRIER SM SPIDER ASSY
7-1.YN32W01009P1
SPIDER .
7-2.YN32W01066P1
SHAFT KOB SHAFT .
8.YN32W01058P1
CARRIER,Housing, Spider SM SPIDER
9.YN32W01067P1
SHAFT SM .
10.YN32W01030P1
SPHERICAL BEARING KOB Superseded by part number: 25Z804D18 .
11.YN32W01029P1
SPHERICAL BEARING KOB Superseded by part number: R25P0047D9 .
12.YN32W01060P1
OIL SEAL SM OIL SEAL
13.YN32W01104P1
BOX SM HOUSING Superseded by part number: YN32W00022F2 .
15.YN32W01071P1
WASHER SM WASHER,THRUST
16.YN32W01073P1
NEEDLE BEARING SM BEARING,NEEDLE .
17.YN32W01072P1
NEEDLE BEARING SM BEARING,NEEDLE
18.YN32W01063P1
WASHER SM WASHER,THRUST
19.ZR16X03500
RING KOB Retaining -- ID 32.20 x OD 35 x Th 1.6mm
20.ZR16X09000
RING KOB Retaining -- ID 84.50 x OD 108 x 3.0mm .
21.YN32W01082P1
SLEEVE SM
22.ZP26D08025
PIN KOB Roll -- OD 08 x 25mm Long
23.HS23C14135G1
SCREW,M14 x 135mm SM M14x2.0x135mm
24.PV02B01073DB
CAP KOB 18.4mm Plastic .
25.YN32W01080D1
RIGID TUBE SM 1/2" PT x 112mm Long
26.ZG31U08000
HYD CONNECTOR SM Elbow, 90° -- 1/2" PT
27.ZE82T08000
PLUG KOB 1/2" PT
28.ZR16X04000
RING KOB Retaining -- ID 37 x OD 40 x Th 1.8mm .
30.YN32W01081P1
OIL SEAL SM OIL SEAL
31.ZG91V02000
LUBE NIPPLE,67 Degree x 1/8" PT KOB 67° x 1/8" PT Superseded by part number: 72283072
32.2444Z3305
BREATHER KOB 1/8"PT




  • Advantage



1. The gear parts are built to fit to the genuine drive gearbox system.

2. The gear parts are supplied strictly according to the genuine parts catalog.

3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including case carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI CAT VOLVO DOOSAN KOBELCO SUMITOMO KATO JCB




  • Warranty



1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.



2. Warranty type: replacement of the parts that have quality problem.



3. Warranty is not valid for below cases

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* rust



  • Packing & Delivery



* Strong carton or wooden box for gear components. Wooden box for gearbox assembly

* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
